Stainless Steel Ball Valve 2PC Ss Threaded Industrial Valves with Optional Mounting Pad Float Valve

Stainless Steel Ball Valve 2PC Ss Threaded Industrial Valves with Optional Mounting Pad Float Valve

Package Size 6.50cm * 3.78cm * 5.00cm Package Gross Weight 0.560kg Stainless Steel Ball Valve 2PC SS Threaded Industrial

Send your inquiry

DESCRIPTION

Basic Info.
Model NO. Ball Valve
Driving Mode Manual
Nominal Pressure JIS10-20K
Channel Straight Through Type
Structure Floating Ball Valve
Type Floating Ball Valve
Function Bypass-Valve
Temperature Normal Temperature
Standard BSPT/Bsp/DIN
Application Industrial Usage, Water Industrial Usage, Household Usage
Transport Package Cartoon
Specification 1/4" - 4"
Trademark yuzheng
Origin Zhejiang
HS Code 8481804090
Production Capacity 150000
Packaging & Delivery
Package Size 6.50cm * 3.78cm * 5.00cm Package Gross Weight 0.560kg
Product Description
Stainless Steel Ball Valve 2PC SS Threaded Industrial Valves with Optional Mounting Pad Float Valve

Product nameStainless Steel 2PC Thread Ball Valve ss threaded Industrial Valves
1)MaterialSS201 SS304, 304L, 316, 316L
2)Size1/4''-4''&DN6-DN100
3)CertificateISO9001: 2000, CE
4)Working pressure1000psi(6.4MPa)
5)Connection EndsThreaded (F/F, M/F), Butt welded, Socket welded (BW, SW).
6)Suitable mediumWater, gas, air and some corrosive liquid
7)Temperature Range-20-300 degree C
8)InvestmentCasting body and cap
9)SealingPTFE, RPTFE, PPL
10)stemSS201, SS304, SS316 Adjustable stem packing,
11)LockingOption
Our advantageSurvival by quality and development by credibility.
Quality first, customer upmost!
100% leakage tested at 100 psi air under water
Blow-out proof stem, ball are made of SS316 or customer request
Pure seals and seats
Can do OEM products
ShipmentBy sea
Delivery timeUsually 25 days around and can negotiate as per order qty
Shipping portNingbo, Shanghai
Term of Payment30% TT deposit, the balance against copy of B/L
Package detailInner CTN, outside plywood case
MOQ20 PCS/size
Gurantee Period18 monthes
Capacity to produce100, 000 PCS/week

DescriptionOptional body structure
1 PC: Economical and Practical 2 PC: Easy to repair, Popular choice 3 PC: Swing-out construction makes the valve easy to repair in line
INVESTMENT CASTING BODY
Improves dimensional control and reduces porosity
Full Port
Full port construction improves flow characteristics for greater process efficiencies
Optional Locking Device

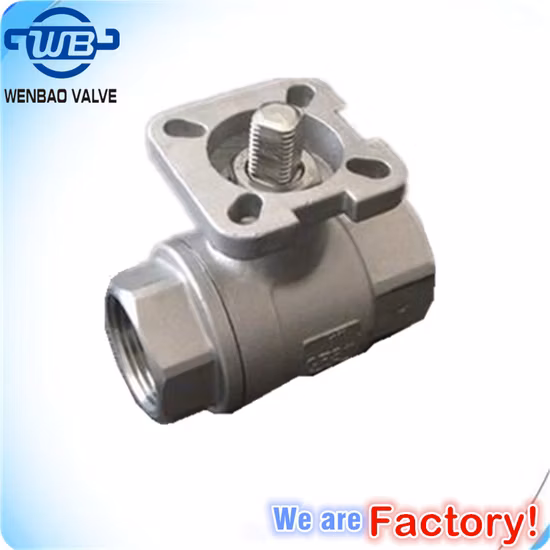

Dual Pattern ISO 5211 Direct Mount Pad No bracket or drive coupling needed for automation Eliminates exposed moving parts for safer work environment Direct drive eliminates play and improves actuator positioning Dual pattern pad fits a wide range of actuator sizes
Corrosion Resistant Blow-Out-Proof Stem Stem is bottom loaded to prevent removal during operationThread Connection: BSPT, NPT, BSP, etc. Size Range: 1/4" (DN8) - 4" (DN100)
Main Parts and Material
No.Component NameMaterial
01BodyCF8, CF8M, CF3M
02SeatPTFE, R-PTFE
03BonnetCF8, CF8M, CF3M
04BallSS304
05StemSS304
06GasketPTFE
07Sealing RingPTFE
08PackingPTFE
09Packing GlandSS304
10HandleSS304
11Spring WasherSS304
12Hex NutSS304
13LockSS304
All valves shell and seat tested to ANSI/ASME B16.34, API 598 and MSS-SP-110 Connected flange specification would comply with ASME B16.5
Product Data

Stainless Steel Ball Valve 2PC Ss Threaded Industrial Valves with Optional Mounting Pad Float Valve


Stainless Steel Ball Valve 2PC Ss Threaded Industrial Valves with Optional Mounting Pad Float Valve

Stainless Steel Ball Valve 2PC Ss Threaded Industrial Valves with Optional Mounting Pad Float Valve

Stainless Steel Ball Valve 2PC Ss Threaded Industrial Valves with Optional Mounting Pad Float Valve

Stainless Steel Ball Valve 2PC Ss Threaded Industrial Valves with Optional Mounting Pad Float Valve

Any interest you, pls contact with us freely.Looking forward to our coopetation!
Delivery Condition
Delivery Time15~30 Days
PackageStandard Exporting Plywood Case
Shipping PortNingbo,China
Shipping TermsEXW, FOB, CFR, CIF, etc.
Payment TermsT/T, Western Union, PayPal, etc. 30% prepayment, 70% balance paid before shipping or against copy of BL
AdvantageOEM/ODM is applicable;Our own casting room
OthersWe also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer,Pipe fittings
8 How can you guarantee the quality of products?
First of all, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or fitting we sell is qualified.
