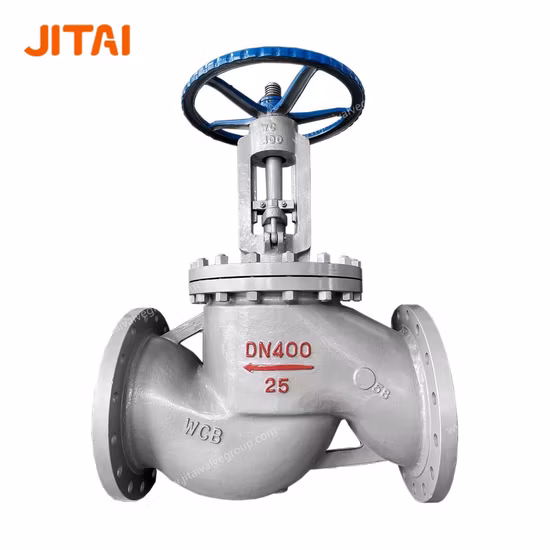

API Cast Steel Straight Pattern Globe Valve for Shut

API Cast Steel Straight Pattern Globe Valve for Shut

Overview Product Description IntroductionThe opening and closing part of the globe valve, or stop valve, is a plug-shape

Send your inquiry

DESCRIPTION

Overview
Basic Info.
Model NO. J41H-600lb
Stem Thread Position Outside Screw Stem Globe Valve
Application Shut-off
Standard DIN, ANSI, JIS
Bonnet Type Bolted Bonnet
Body Wcb
Pressure Rating Cl150-Cl900
Warranty Time 120 Days After Shipment
Certificates API 6D, CE, ISO9001, Eac 010/032, API 607, Sil, Is
Trim Wcb+Stellite
End Connection ASME B16.5, ASME B16.47,En1092
Size Range Nps 2- Nps 24 (DN50-DN600)
Inspection and Test API 598, En 12266
Face to Face ASME B16.10, En558
Design ASME B16.34, BS1873,API 623
Transport Package Plywood Case
Specification 8′′ (DN200, 200MM)
Trademark Jitai
Origin China
HS Code 8481804090
Production Capacity 10000 Sets Per Month
Product Description

Product Description


IntroductionThe opening and closing part of the globe valve, or stop valve, is a plug-shaped disc with a flat surface or a cone on the sealing surface, and the disc moves linearly along the center line of the valve seat. It can be used to control various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal, and radioactive media. Features1.OS &Y, bolted bonnet or pressures seal; 2.Reliable cut-off and throttling function;3.Flow adjustment

Scope
Nominal size2"~48"(DN50~DN1200)
Nominal pressureClass150~2500(PN10~PN420)
Standard:BS1873, ASME B16.34
Body materialWCB, WC6, WC9, LCB, LCC, C5,C12, CF8, CF8M, CF8C, bronze, Inconel, monel
End connectionRF, BW, RTJ,
Operationhandwheel, bevel gear, Pneumatic, Electric, Hydraulic
Product Parameters


API Cast Steel Straight Pattern Globe Valve for Shut-off

API Cast Steel Straight Pattern Globe Valve for Shut-off

Company Profile
Jitai Valve Group is a genuine valve manufacturer.
  • 7000-sqm factory
  • 100 employees
  • 5+ senior engineers
  • 30+ design patents
  • 2 million sets of valves delivered
  • 20 million USD annual revenue
Since 1988, we have been expert in manufacturing a wide scope of industrial valves including:
  • Gate valves
  • Globe valves
  • Check valves
  • Ball valves
  • Butterfly valves
  • API valves
  • Steam valves
  • High pressure valves
  • High temperature valves
  • Power Plant valves
Our Advantages
  1. Heavy-duty valve expert with proven expertise in harsh environment;
  2. Stringent quality control and traceable reports to provide zero-defect products;
  3. Rugged and durable configuration according to API, ASME, BS, JIS, EN standards;
  4. All kinds of UG, PRO/E, Solidworks software simulations ensure the efficiency and robustness for tailored components;
FAQ


1
Q:Are you are a trading company or manufacturer?
A:We are a manufacturer with 7000-sqm factory and 100 employees.
2
Q: Can you provide the assembly drawing for confirmation ?
A: Yes, we can give the relavant drawing within 24 hours.
3
Q: Can you do non destructive test for valve components ?
A: Yes, we can perform radiographic testing, penetration testing, ultrasonic testing, magnetic particle testing, etc
4
Q: How can I vist you when I am in China?
A: We are near the Wenzhou Airport. If you take a plane, it takes 2 hours to reach our factory from Shanghai, 2 hours from Guangzhou, 3 hours from Beijing.
5
Q: Can we take sample for quality check?
A: Definitely. You can advise the model number and we will prepare the sample within 7 days.
6
Q: How can I become your distributor or agent?
A: You can send your company profile and reference list to our sales manager.
7
Q: Can you help with site maintenance and commissioning?
A: Yes, we are glad to offer our assistance whenever you need it. We can send our after sales team to address the issue within 14 days
