DESCRIPTION

Basic Info.

Model NO.	VS-075DA
Structure	Floating Ball Valve
Type	Floating Ball Valve
Temperature	Normal Temperature
Standard	ISO5211
Material Seat	PTFE R-PTFE Peek
Material Body	Stainless Steel, 316 304
Control Fluid	Air, Boiler Feedwater, Cargo Oil, Condensate, Corr
Design Code	ASME B16.34
Transport Package	Plywood Case Package
Specification	1 inch-12 inch
Trademark	VESON or Cusomer"s
Origin	China
HS Code	84123900
Production Capacity	50000PC / Y

Product Description

Veson valve ltd. is a professional manufacturer & wholesale of VESON series pneumatic actuator, electric actuator, accessories for pneumatic actuator (limit switchbox, solenoid valve, positioner, air filter regulator, manual override), pneumatic actuated ball valve/ butterfly valve, manual operated ball valve/ butterfly valve and control valve etc. At the same time, the company is certified by ISO9001: 2000 quality management system. We posses the solid technology support and many experts, in which 2 senior engineers, 6 engineers, account for 34% of the staff.

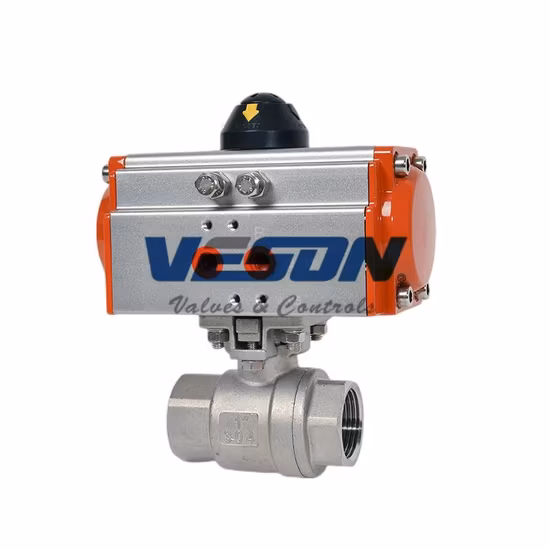

ACTUATED STAINLESS STEEL BALL VALVE (3 PIECE DESIGN) THREADED ENDS - SIZES UP TO 4"

Valve Features:

• Full Port 3-Piece Stainless Steel Ball Valves
• 1/4" through 4" NPT
• Direct Mount for Low-Profile,
• Cost-Efficient Operations
• Electric and Pneumatic Actuators
• NPT, socket weld or butt weld end
• Full port stainless steel Ball Valves 1/4" through 4"
• NPT, socket or butt weld ends
• RTFE seats/TFE seals
• Swing out design for easy maintenance
• ISO mounting pad

ACTUATOR FEATURES:

Pneumatic Actuators:

• Rack and pinion Actuator design
• Spring return or double acting
• Open and closed adjustment stops
• True NAMUR accessory mounting
• Visual indicator
