WB-118 Fully Welded Trunnion Mounted Steel Ball Valve for Oil and Gas Features: Material: Body: ST37.0/A106/Steel 20 Bal

Send your inquiry

DESCRIPTION

Basic Info.
Model NO. Q367F
Type Trunnion Mounted Ball Valve
Function Shut-off
Temperature -20~232
Application Water, Oil, Air
Test Standard API 598
Place of Origin Wenzhou
Body Material St.37.0/A106/Steel 20
Size Range Dn350~Dn1200
Transport Package Carton Box+Plywood Case
Specification CE
Trademark WENBAO
Origin China
HS Code 8481804090
Production Capacity 10000PCS/Month
Product Description

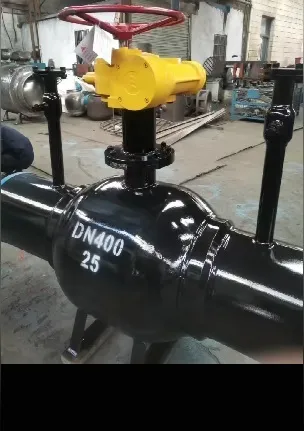

WB-118 Fully Welded Trunnion Mounted Steel Ball Valve for Oil and Gas
Features:
Material:
Body: ST37.0/A106/Steel 20
Ball: SS304
Stem: 2Cr13
Stem seal: FPM or VITON
Ball seal: RPTFE (PTFE+C)
*The stem height and face to face dimension according to client's requirements.
Main Parts and Materials

1
BodyAISI 206.2Hexagon Screw8.8
2End SocketAISI 206.3O-RingViton
3Ball3046.4Oilless Bearing304+PTFE
4.1Support RingA1056.5Drain Plug20Cr13
4.2SeatPTFE-C7.1Branch PipeAISI 20
4.3O-RingViton7.2Upper GlandA105
4.5Spring17-7pH7.3O-RingViton
5.1Stem20Cr137.4GasketRPTFE
5.2Oilless Bearing304+PTFE7.5Packing20Cr13
5.3Thrust GasketPTFE7.5Hexagon Screw8.8
5.4O-RingViton7.6Clamp Spring65Mn
5.5O-RingViton41Actuator
5.6Flat KeyAISI 104542Bolt8.8
6.1BaseA10543Nut8

Main Dimensions
DNPNLDGL2
35016510510377405
40016838560426420
45016991578487430
50016991660530470
600161143820630580
7001613461018720650
8001615241135820910
9001617271245920853
100016184014151020950
1200162100157612201030

Company Overview
Zhejiang Wenbao Valve Co., Ltd was established in 1985. The main products range are as following: Fully Welded Ball Valve, 1PC/2PC/3PC Flanged Ball Valve, Threaded Ball Valve, Mini Ball Valve, High Pressure Ball Valve, Pneumatic Ball Valve, Electric Ball Valve, Sanitary ball valve, Ball valve with mounting pad and other valves like gate, globe, check valves and Strainer, etc. Main material include: Stainless steel, Cast Steel, Forged Steel and Brass, etc. The products manufactured as per API, ANSI, JIS, ISO, BS, JB and GB, and have CAD valve design and quality testing center. The products are widely used in chemical industry, oil, metallurgy, light industry, electric power, food, pharmacy, civil industry, fiber industry, liquefied natural gas, liquefied petroleum gas, steel mills, heating pipes, etc. Our company passed the ISO 9001: 2008, Standards Organization of Nigeria(SON), International Quality Award Certificate, Manufacture License of Special Equipment, KC of South Korea, CE of Europe, etc.
